Seeing and measuring the impossible

VIEW offers a full line of optical metrology systems for wafer, photomask, slider, MEMS, semiconductor package, HDD suspension, probe card, and micro-component process measurements.

Critical Dimensional Measurement Systems

Benchmark XLT

Extra large area dimensional metrology system.

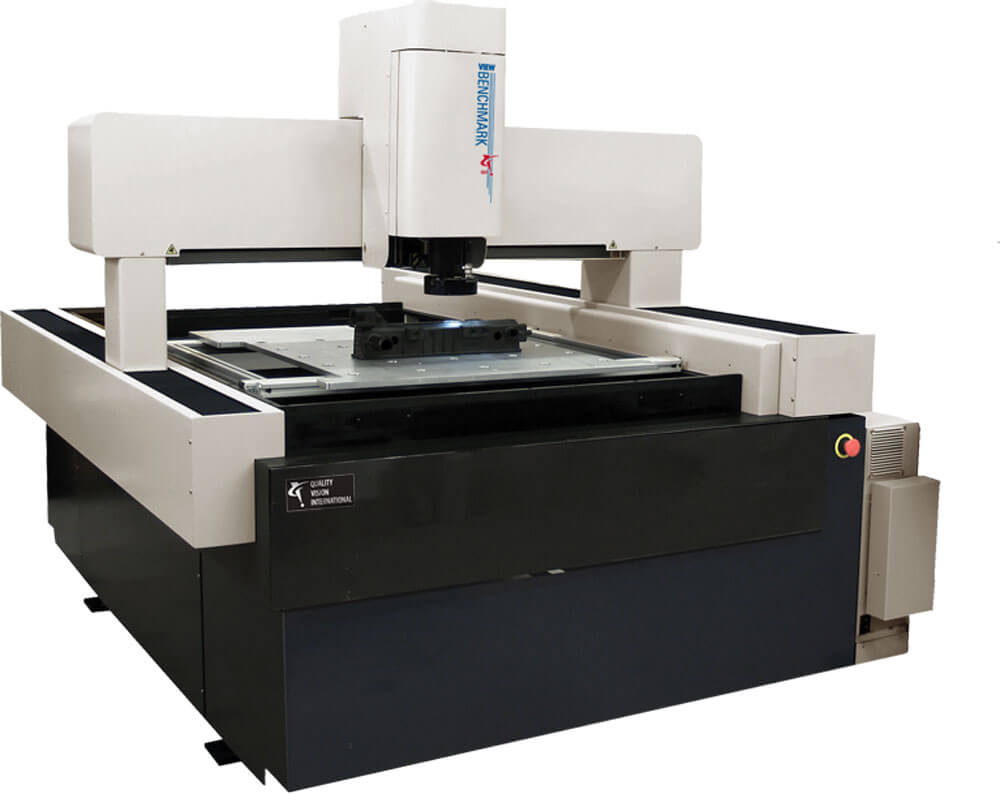

The VIEW Benchmark™ XLT delivers VIEW performance and reliability in a large travel, non-contact, high precision metrology system.

The Benchmark XLT is designed to handle large area parts or nested groups of smaller parts using its moving bridge design. Advanced image processing

VIEW Metrology Software (VMS™) is standard on Benchmark XLT and offers a wide array of standard measurement tools as well as a built-in scripting language to enable custom-functions.
Elements® CAD-to-Measure Software is optional on Benchmark XLT and provides automatic translation of 2-D CAD files in measurement programs, enabling very fast set-up of measurement routines for even the most complex parts.
VMS Off-Line Workstation Software is optional on Benchmark XLT allowing for measurement routines to run while programming is done on a separate .

Key Features and Options

The XLT offers extended travel ranging from 900 mm x 1500 mm to 1500 mm x 2000 mm to handle large area parts or nested groups of smaller parts. The XLT's moving bridge design features an open work envelope for loading and unloading large parts.

Advanced optics, illumination, and image processing make the Benchmark XLT a world-class metrology system. Benchmark XLT operates with one or more of VIEW's software packages:

Elements® CAD-to-Measure Software is optional on Benchmark XLT and provides automatic translation of 2-D CAD files in measurement programs, enabling very fast set-up of measurement routines for even the most complex.

	Standard	Optional
X,Y,Z Travel	624x624x150 mm	624x624x200 mm
Load Capacity	50 kg load evenly distributed on glass 100 kg load evenly distributed on observation platform
Imaging Optics	Dual magnification, fixed lens optics with field interchangeable front lens. VIEW 2.5X front lens included as standard. Low mag has 1:1 with front lens; high mag has 4:1 with front lens.	Single magnification, fixed lens optics with factory configurable back tube and field interchangeable front lens. VIEW 1X back tube and 2.5X front lens included as standard.
Metrology Camera	1.4 megapixel, 1/2 inch, digital monochrome	1.4 megapixel, 2/3 inch, digital, monochrome 2.0 megapixel 1/2 inch, digital monochrome
Illumination	All LED coaxial through-the-lens surface light and below-the-stage back light	Multi-color programmable ring light Grid autofocus system
Sensor Options		Through-the-lens (TTL) laser Spectra Probe white light range sensor Off-axis triangulation laser
Measurement Modes	High Speed Move and Measure (MAM)	Continuous Image Capture (CIC)
